ClusterNetworkPolicy or what happened to the AdminNetworkPolicy and BaselineAdminNetworkPolicy?

AdminNetworkPolicy (ANP) and BaselineAdminNetworkPolicy (BANP) were the first APIs created by the Network Policy API working group. They are v1alpha1 resources, which means that they are not stable and are mostly used to get early feedback on the API design from the community.

If you have seen these APIs, you probably have noticed that they are quite similar. If you have written controllers to reconcile these resources, you probably also found some code duplication. The original reason for having two separate resources was just a lack of use cases for multiple instances of BANP, which made it a singleton. However, with more feedback from the community, we have realized that those use cases do exist and that having two separate resources adds more burden than value.

What has changed

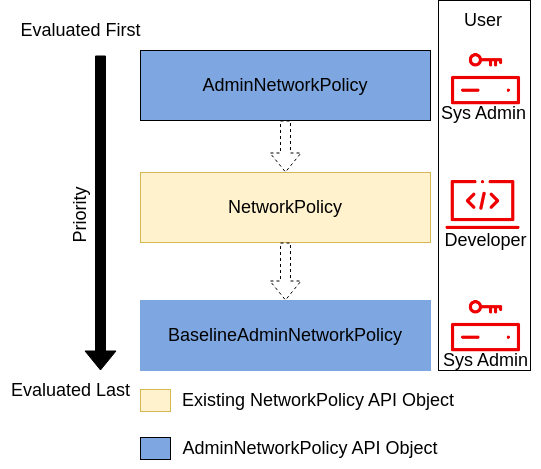

As a reminder, here is how the original Admin Network Policy API Model looked like:

The model stays the same with the new API, the only difference is that evaluation order is now defined by the priority field and not by the resource type. AdminNetworkPolicy becomes a ClusterNetworkPolicy with tier=Admin and BaselineAdminNetworkPolicy becomes a ClusterNetworkPolicy with tier=Baseline.

Other changes bring the functionality of BaselineAdminNetworkPolicy to parity with AdminNetworkPolicy. This includes: - Allowing multiple ClusterNetworkPolicy resources with tier=Baseline by using the same priority field as for tier=Admin. - Supporting Pass action in ClusterNetworkPolicy with tier=Baseline to allow skipping all further rules in the Baseline tier. - Supporting domainNames matching for egress rules in ClusterNetworkPolicy with tier=Baseline.

The enhancement proposal has some more details for those interested.

Examples

Let's take a look at some examples based on the original user stories.

Story 1:Deny traffic at a cluster level

To deny all traffic at the cluster level, the following AdminNetworkPolicy was used:

apiVersion: policy.networking.k8s.io/v1alpha1
kind: AdminNetworkPolicy
metadata:
  name: cluster-wide-deny-example
spec:
  priority: 10
  subject:
    namespaces:
      matchLabels:
        kubernetes.io/metadata.name: sensitive-ns
  ingress:
    - action: Deny
      from:
      - namespaces:
         namespaceSelector: {}
      name: select-all-deny-all

which looks like this with the new ClusterNetworkPolicy API:

apiVersion: policy.networking.k8s.io/v1alpha2
kind: ClusterNetworkPolicy
metadata:
  name: cluster-wide-deny-example
spec:
  tier: Admin
  priority: 10
  subject:
    namespaces:
      matchLabels:
        kubernetes.io/metadata.name: sensitive-ns
  ingress:
    - action: Deny
      from:
      - namespaces:
          matchLabels: {} # Match all namespaces.
      name: select-all-deny-all

Story 5: Cluster Wide Default Guardrails

To deny all traffic in a cluster by default (in an overridable manner), the following BaselineAdminNetworkPolicy was used:

apiVersion: policy.networking.k8s.io/v1alpha1
kind: BaselineAdminNetworkPolicy
metadata:
  name: default
spec:
  subject:
    namespaces: {}
  ingress:
    - action: Deny   # zero-trust cluster default security posture
      from:
      - namespaces:
          namespaceSelector: {}

which looks like this with the new ClusterNetworkPolicy API:

apiVersion: policy.networking.k8s.io/v1alpha2
kind: ClusterNetworkPolicy
metadata:
  name: default
spec:
  tier: Baseline
  priority: 10
  subject:
    namespaces: {}
  ingress:
    - action: Deny   # zero-trust cluster default security posture
      from:
      - namespaces: {}

Migration

We appreciate all early adopters of the AdminNetworkPolicy and BaselineAdminNetworkPolicy APIs. You can continue using them at their latest released version v0.1.7 At the same time, we encourage you to plan your migration to the new ClusterNetworkPolicy API, which can be done once its first version is available. We plan to base our beta release on the ClusterNetworkPolicy API.
